Fixed Truss Anchor Fall Protection Kits

Fixed Truss Anchor Kits

In some instances, the truss system found in your building may be strong enough to support a fall protection system.  By permanently attaching a D-Ring anchor to the bottom chords of an overhead truss system, we can create an OSHA compliant anchor point that serves as part of a fall arrest system.  Unlike our Connect Safe Portable Truss Anchors, the Fixed Truss Single Point Anchor is mechanically attached with steel plates and a threaded bolt and nut combination.

Fixed Truss Anchor Kits
Fixed Truss Anchor Kits
Fixed Truss Anchor Kits
Fixed Truss Anchor Kits
Fixed Truss Anchor Kits
Fixed Truss Anchor Kits
Fixed Truss Anchor Kits
Fixed Truss Anchor Kits
Fixed Truss Anchor Kits

grainger-logoContact Your Local Grainger Rep For Fixed Truss Anchor Kit Pricing and Availability

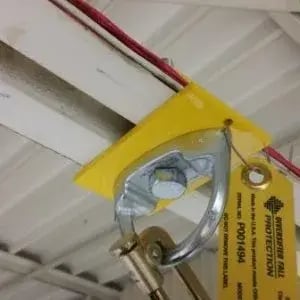

The Fixed Truss Anchor Fall Protection Kit is a fast-installing fall arrest solution that uses the structural truss design of your building to create an OSHA compliant tie-off point for personnel working at heights. To install, consult the owner’s manual and visually determine a location along the bottom truss cord. Attach the anchor assembly at the desired location with the included hardware and tighten the nut using a torque wrench (not included) to 145-155 foot-pounds. The Fixed Truss Anchor is rated for one 310 lb. user and designed for use with K, KCS, LH, or DLH series truss systems capable of withstanding a concentrated load of 1,800 pounds.

Installation Notes
Truss anchorage locations must be approved by a safety engineer or a qualified person and must meet all of the requirements noted in the Connect Safe Fixed Truss Anchor Instruction Manual.

  • Bracing shall be straight, undamaged, and meet the original design intent
  • The span and loading of the truss affects the allowable concentrated load that may be applied to the truss. It must be capable of withstanding a concentrated load of 900 pounds with a safety factor of two
  • No more than one user is permitted at a time per truss
  • Do not attach to a truss that is smaller than 18 inches in height
  • The truss must be inspected by an engineer or qualified person for structural integrity which includes but is not limited to corrosion, end connections, size, load capacity, welds, existing loading, bracing, span, or any other unsafe conditions

Kit Contents
Each Fixed Truss Anchor Kit includes:

  • OSHA/ANSI Compliant Fixed Truss Anchor
  • Installation Hardware
  • (1) MSA/Latchways or DBI/SALA Self-Retracting Lifeline
  • User Installation & Instruction Manual
  •  Kits with body harnesses are also available, as shown in the table below

Fixed Truss Anchor Fall Protection Kits From Diversified Fall Protection

Kit Number*Self-Retracting Lifeline Body Harness
grainger-logo
*All Fixed Truss Anchor Kits Include an OSHA Compliant Truss Anchor, Installation Hardware, and Instruction Manual
Contact Your Local Grainger Rep For Pricing and Availability
FTAR11G11' DBI / SALA Rebel Galvanized SRLNot Included
FTAR20W20' DBI / SALA Rebel Web SRLNot Included
FTAR20G20' DBI / SALA Rebel Galvanized SRLNot Included
FTAR33G33' DBI/SALA Rebel Galvanized SRLNot Included
FTAR33S33' DBI / SALA Stainless Steel SRLNot Included

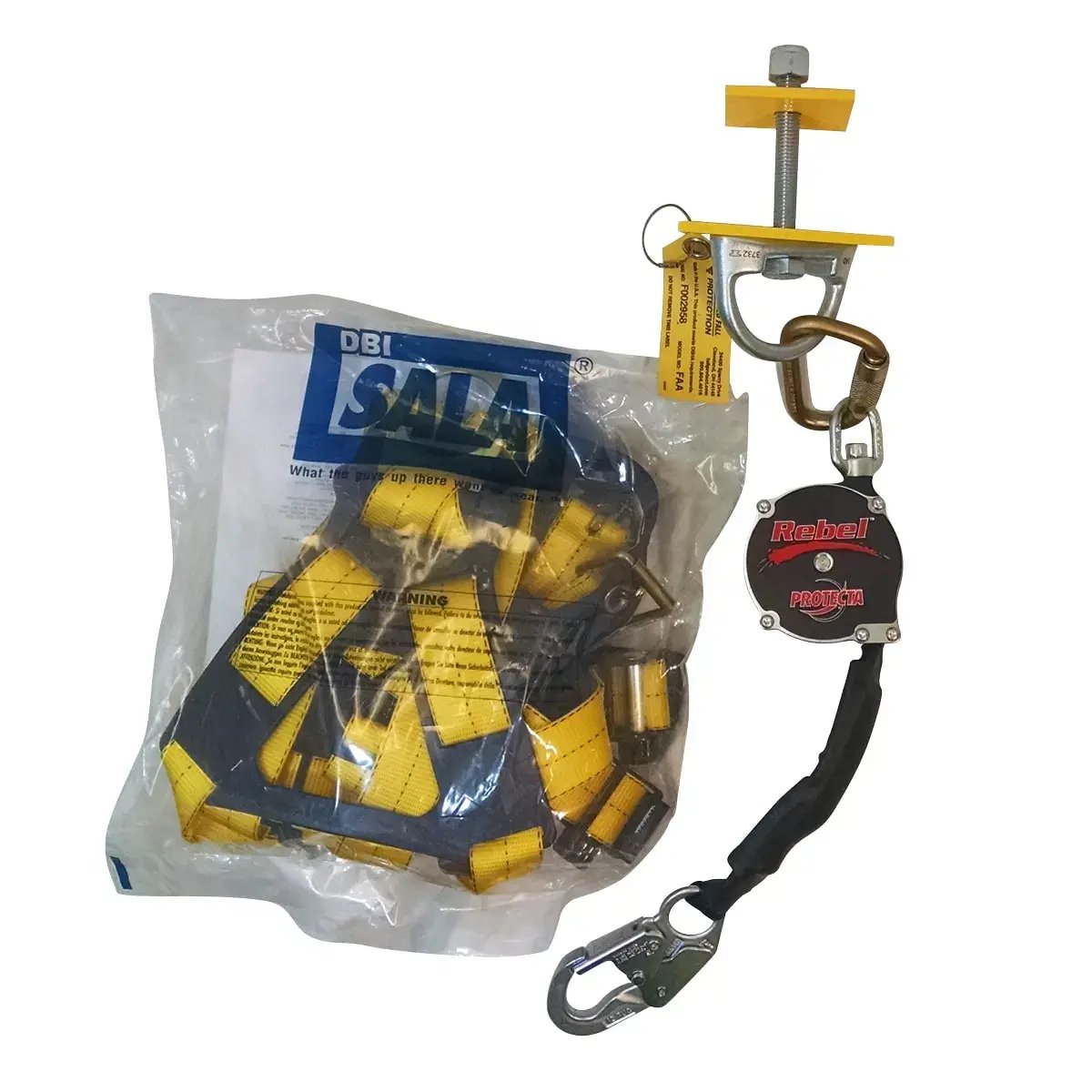

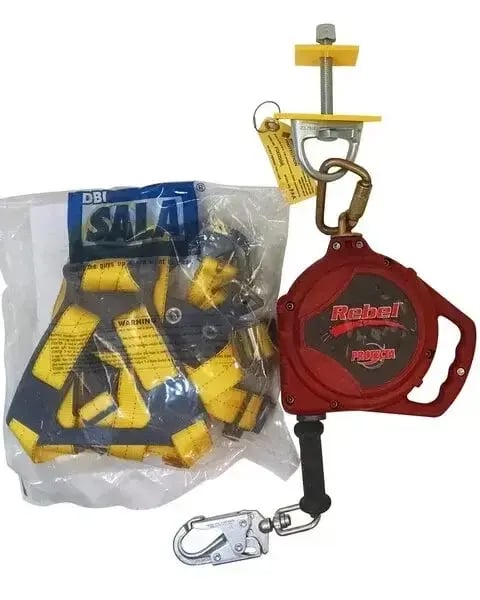

FTAR11WH11' DBI / SALA Rebel Web SRL DBI / SALA Delta Harness
FTAR11GH11' DBI / SALA Rebel Galvanized SRL DBI / SALA Delta Harness
FTAR20WH20' DBI / SALA Rebel Web SRL DBI / SALA Delta Harness
FTAR20GH20' DBI / SALA Rebel Galvanized SRL DBI / SALA Delta Harness
FTAR33GH33' DBI / SALA Rebel Galvanized SRL DBI / SALA Delta Harness
FTAR33SH33' DBI / SALA Rebel Stainless Steel SRL DBI / SALA Delta Harness
FTAU11W11' DBI / SALA Ultra-Lok Web SRLNot Included
FTAU20W20' DBI / SALA Ultra-Lok Web SRLNot Included
FTAU20G20' DBI / SALA Ultra-Lok Galvanized SRLNot Included
FTAU30G30' DBI / SALA Ultra-Lok Galvanized SRLNot Included
FTAU20S20' DBI / SALA Ultra-Lok Stainless Steel SRLNot Included
FTAU30S30' DBI / SALA Ultra-Lok Stainless Steel SRLNot Included

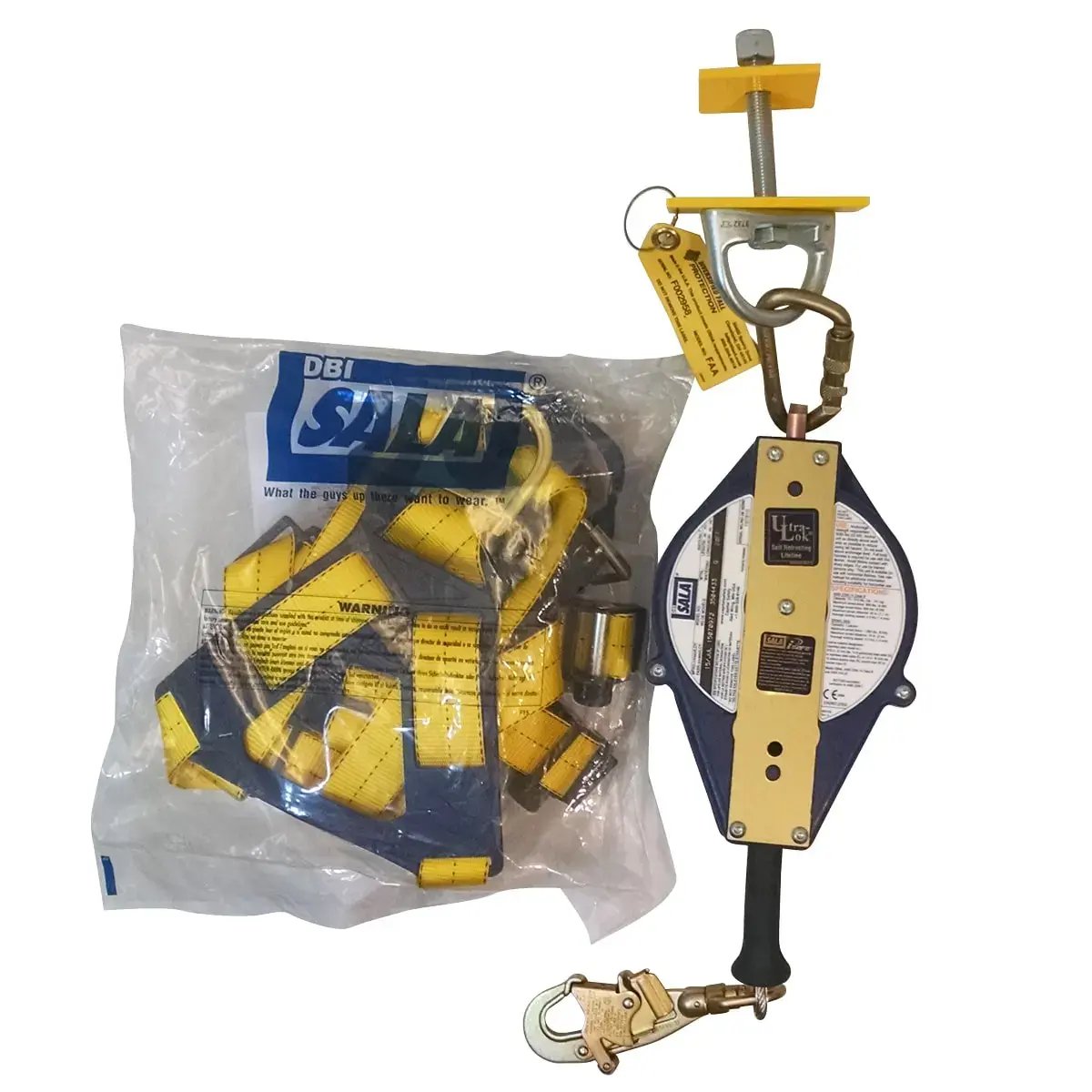

FTAU11WH11' DBI / SALA Ultra-Lok Web SRLDBI / SALA Delta Harness
FTAU20WH20' DBI / SALA Ultra-Lok Web SRLDBI / SALA Delta Harness
FTAU20GH20' DBI / SALA Ultra-Lok Galvanized SRLDBI / SALA Delta Harness
FTAU30GH30' DBI / SALA Ultra-Lok Galvanized SRLDBI / SALA Delta Harness
FTAU20SH20' DBI / SALA Ultra-Lok Stainless Steel SRLDBI / SALA Delta Harness
FTAU30SH30' DBI / SALA Ultra-Lok Stainless Steel SRLDBI / SALA Delta Harness

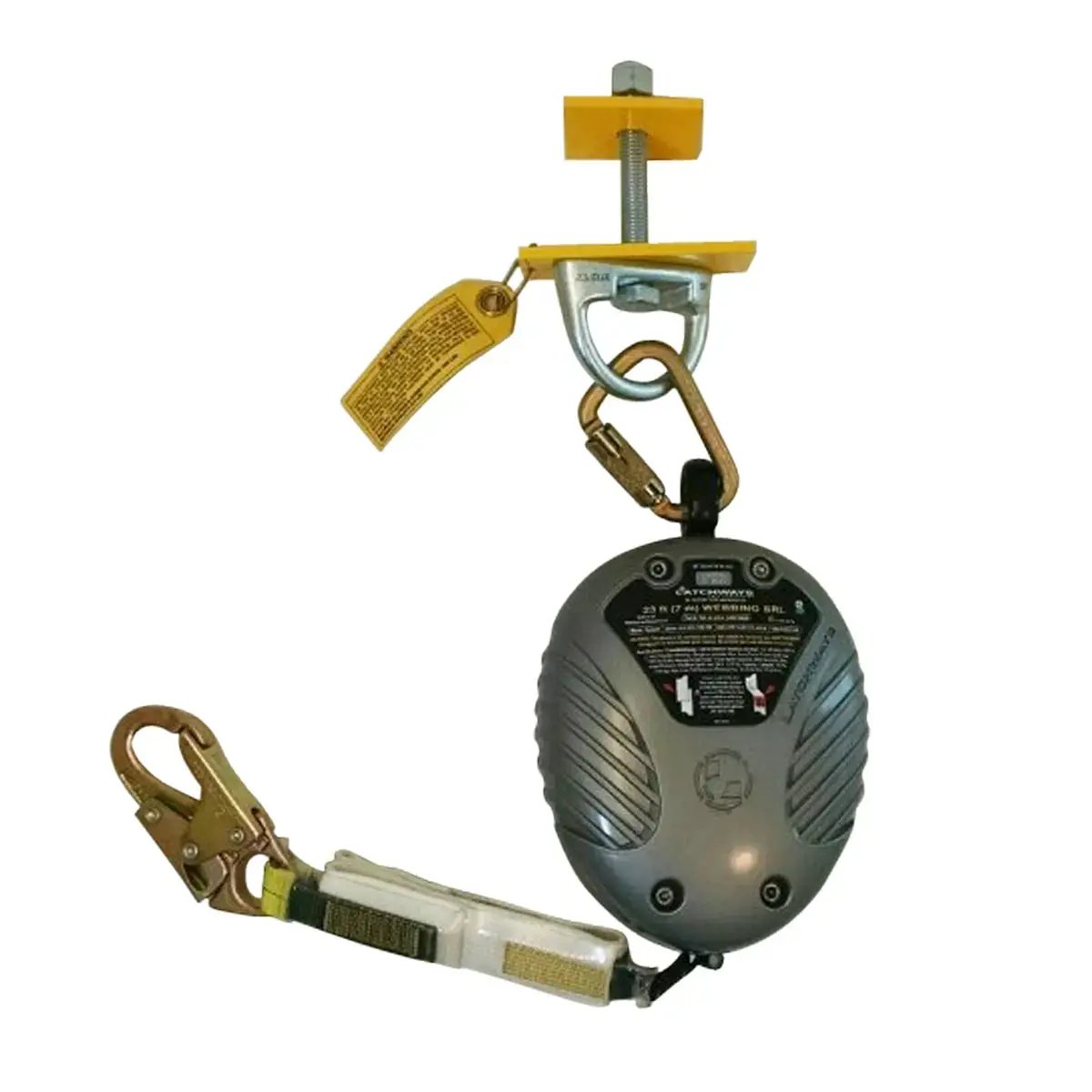

FTAM12W12' Latchways Web SRLNot Included
FTAM23W23' Latchways Web SRLNot Included
FTAM23G23' Latchways Galvanized SRLNot Included
FTAM30G30' Latchways Galvanized SRLNot Included
FTAM23S23' Latchways Stainless Steel SRLNot Included
FTAM30S30' Latchways Stainless Steel SRLNot Included

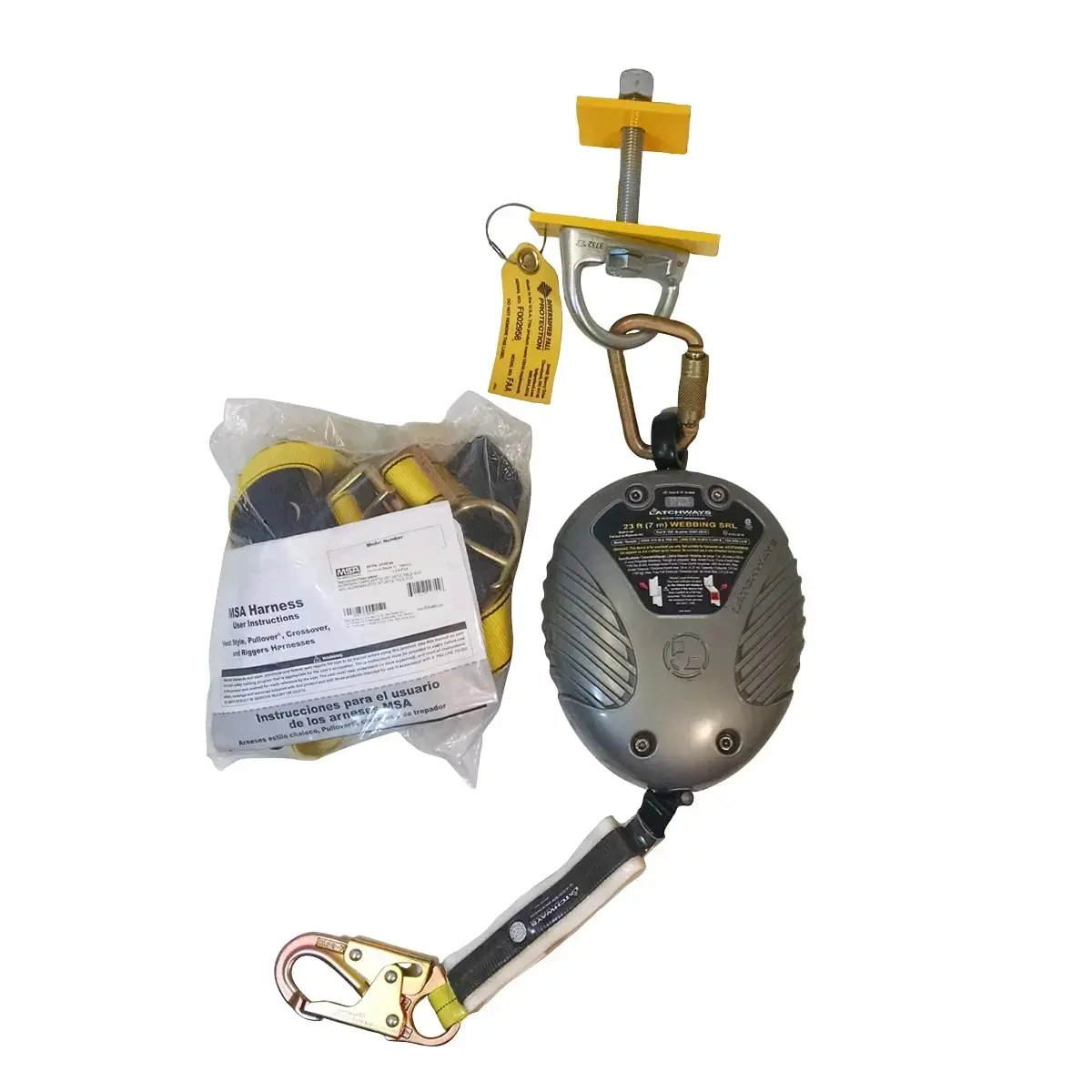

FTAM12WH12' Latchways Web SRLMSA Workman Harness
FTAM23WH23' Latchways Web SRLMSA Workman Harness
FTAM23GH23' Latchways Galvanized SRLMSA Workman Harness
FTAM30GH30' Latchways Galvanized SRLMSA Workman Harness
FTAM23SH23' Latchways Stainless Steel SRLMSA Workman Harness
FTAM30SH30' Latchways Stainless Steel SRLMSA Workman Harness

Did You Know?

A Horizontal Lifeline System must be engineered for two times the applied load in the event of a fall?
