Confined Space Hoist Systems

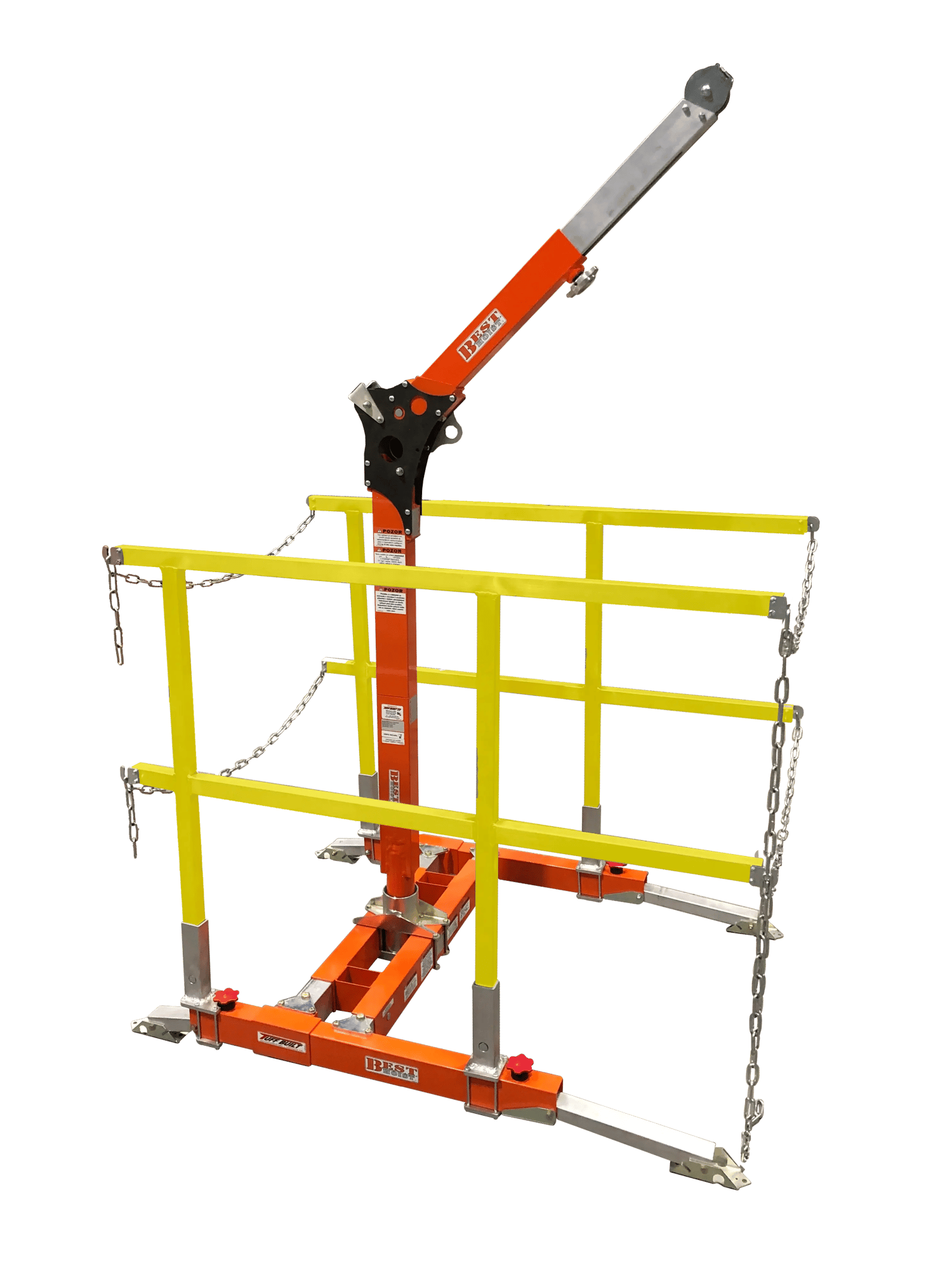

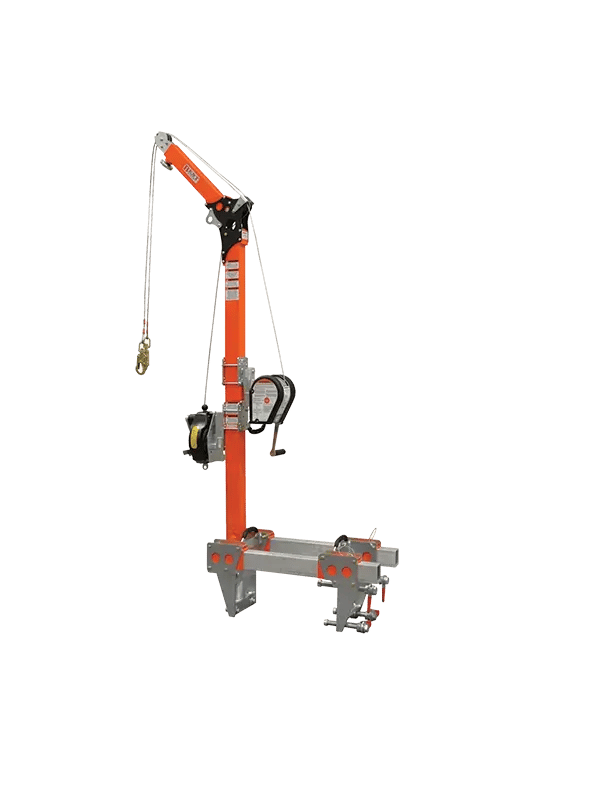

Confined Space Hoist Systems for Entry, Rescue, and Retrieval

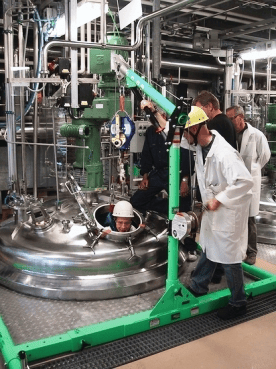

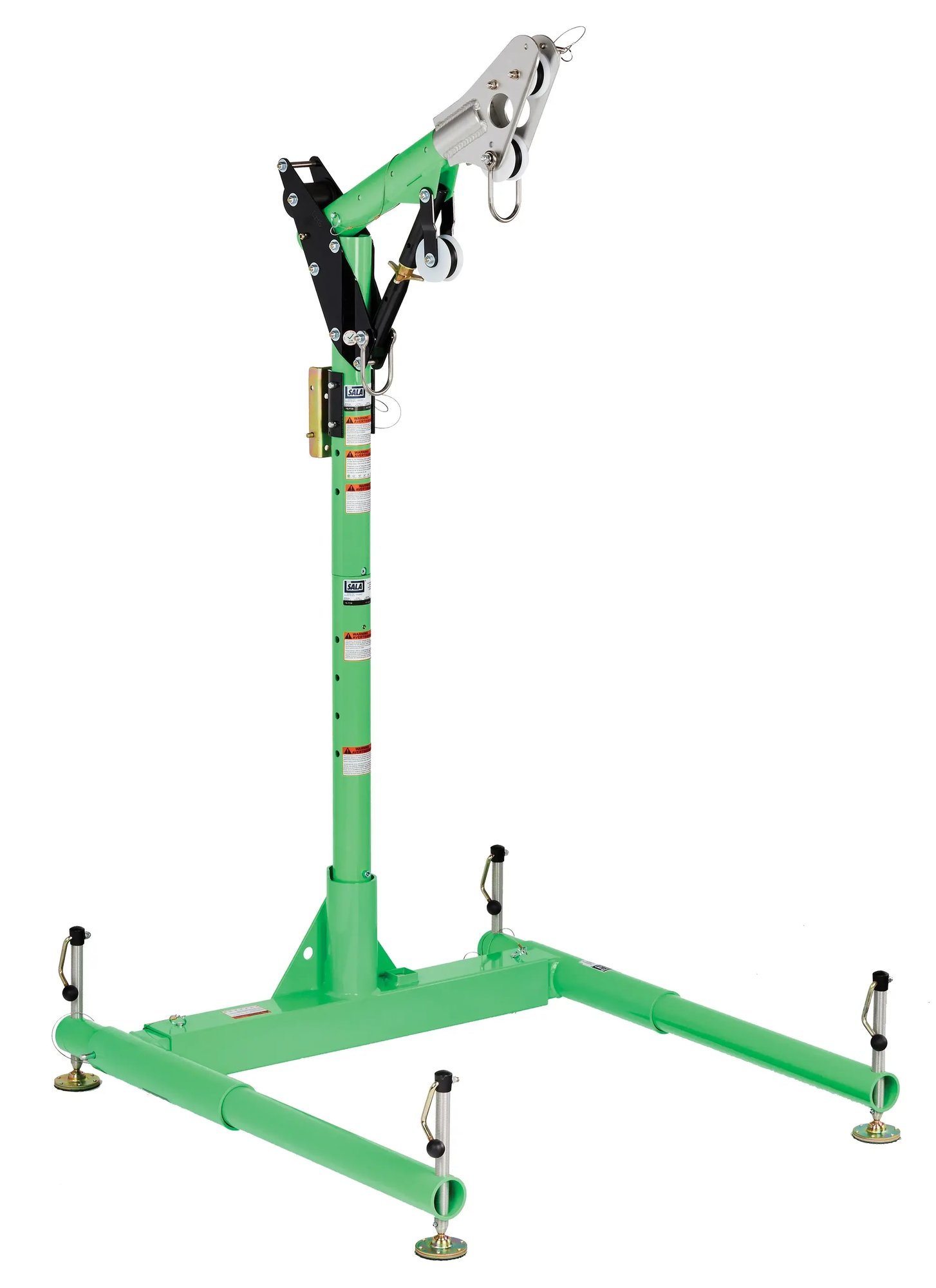

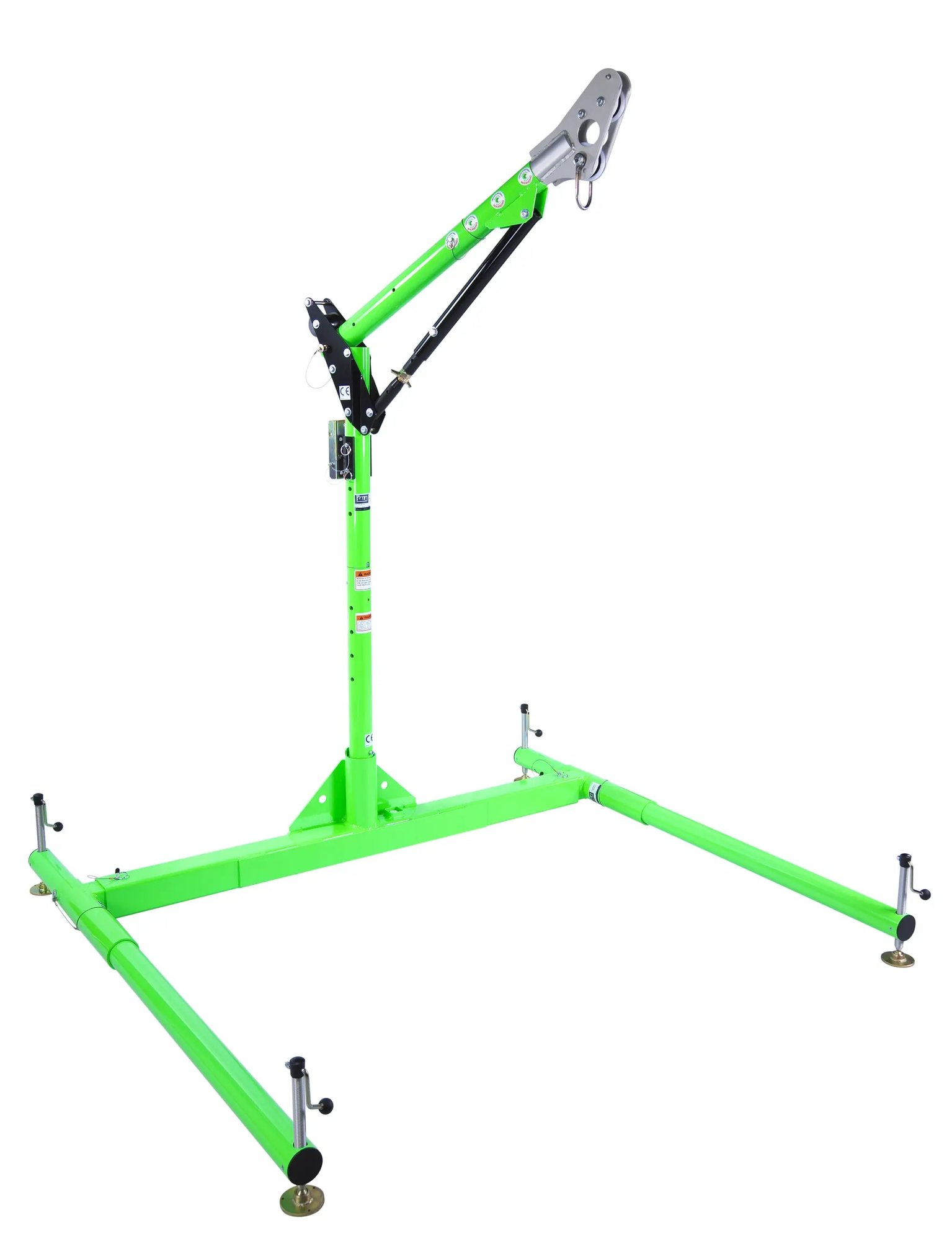

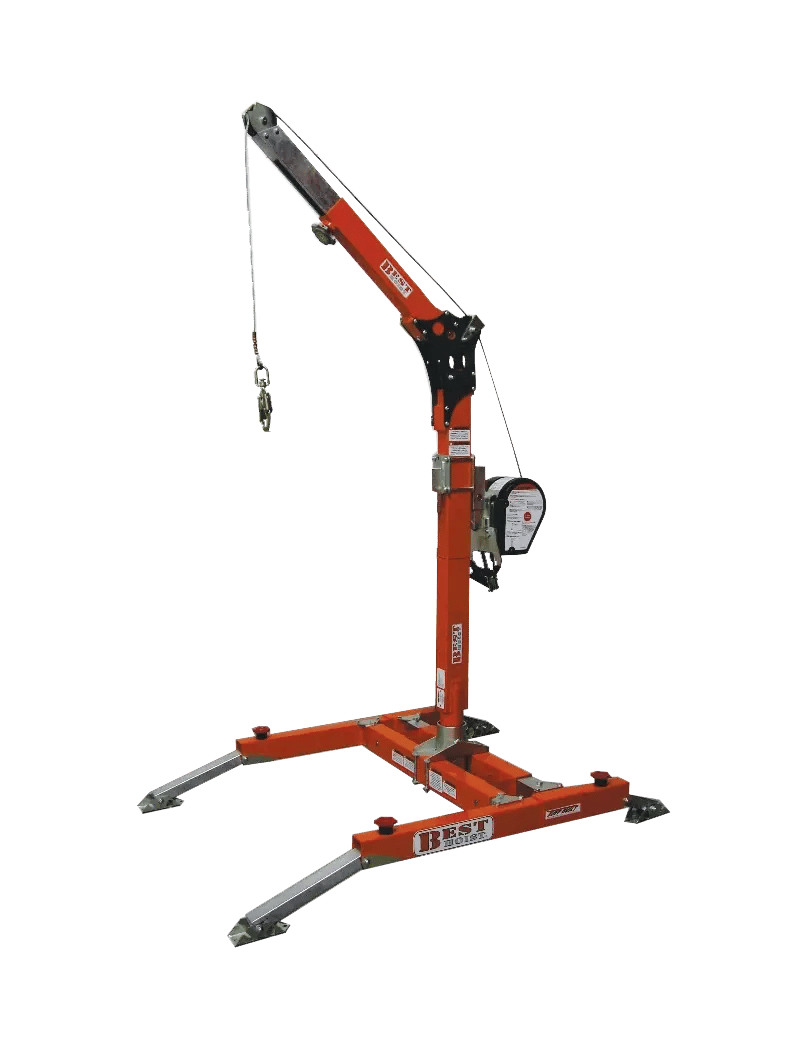

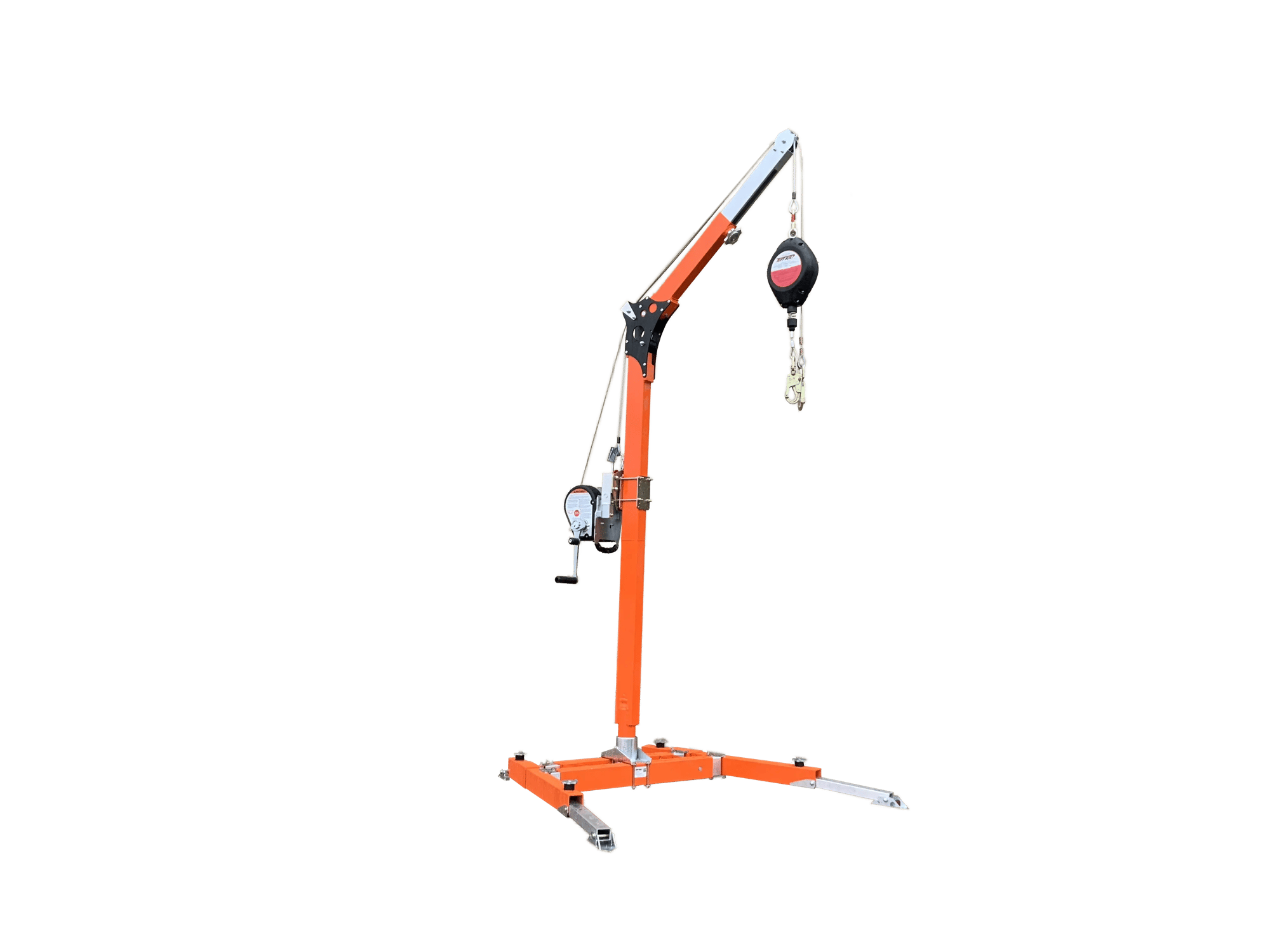

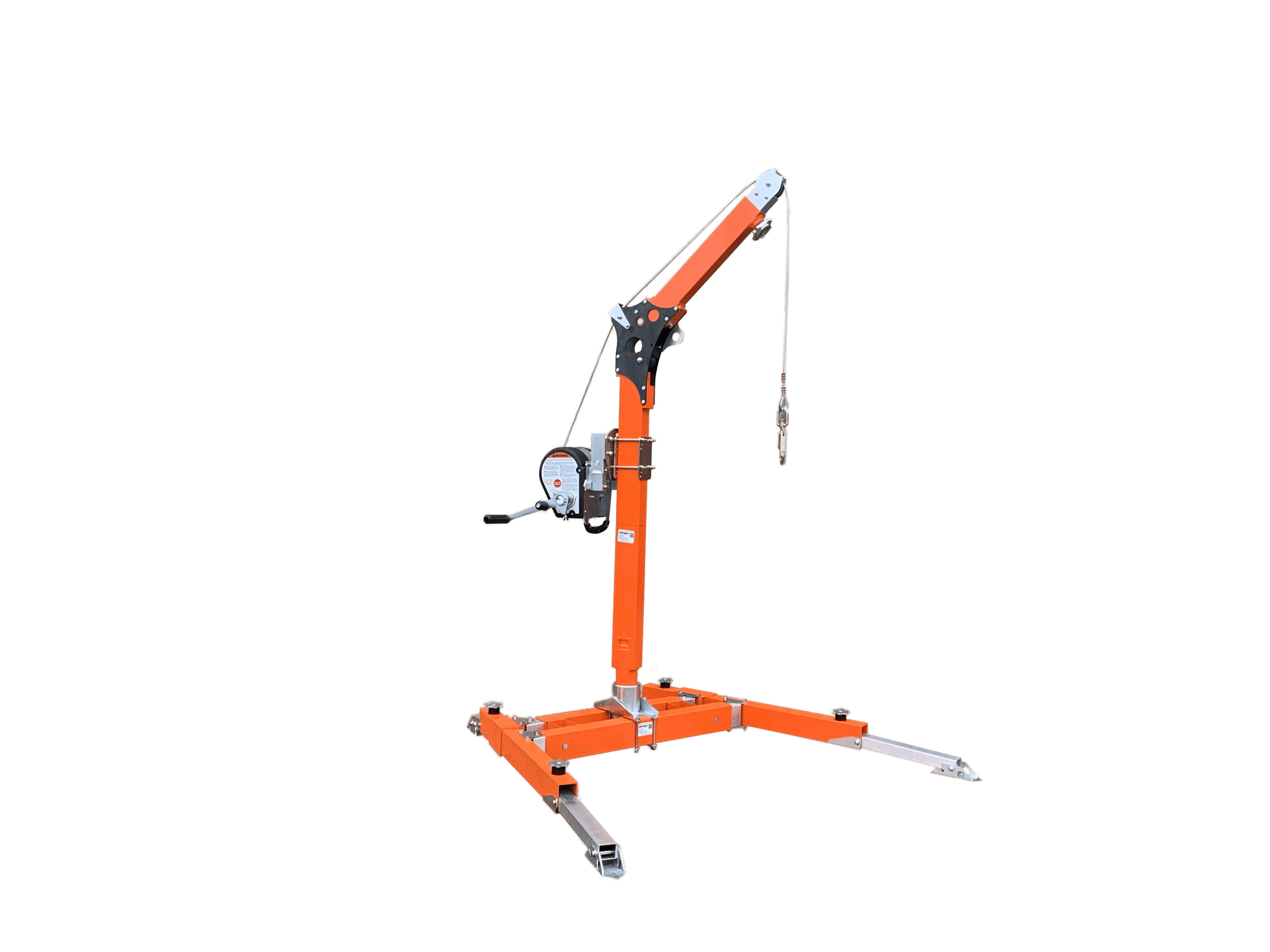

Hoist systems are designed for manhole and confined space entry, retrieval, and rescue applications.   From portable hoist systems designed for quick and easy set-up, to permanent installations intended for frequent use, the safety specialists at Diversified Fall Protection can recommend a hoist system to suit your specific confined space and rescue requirements.

Design Considerations

  • Constructed from high strength, light-weight materials for ease of use.
  • Pivoting davit offers adjustment for overhead clearance restrictions.

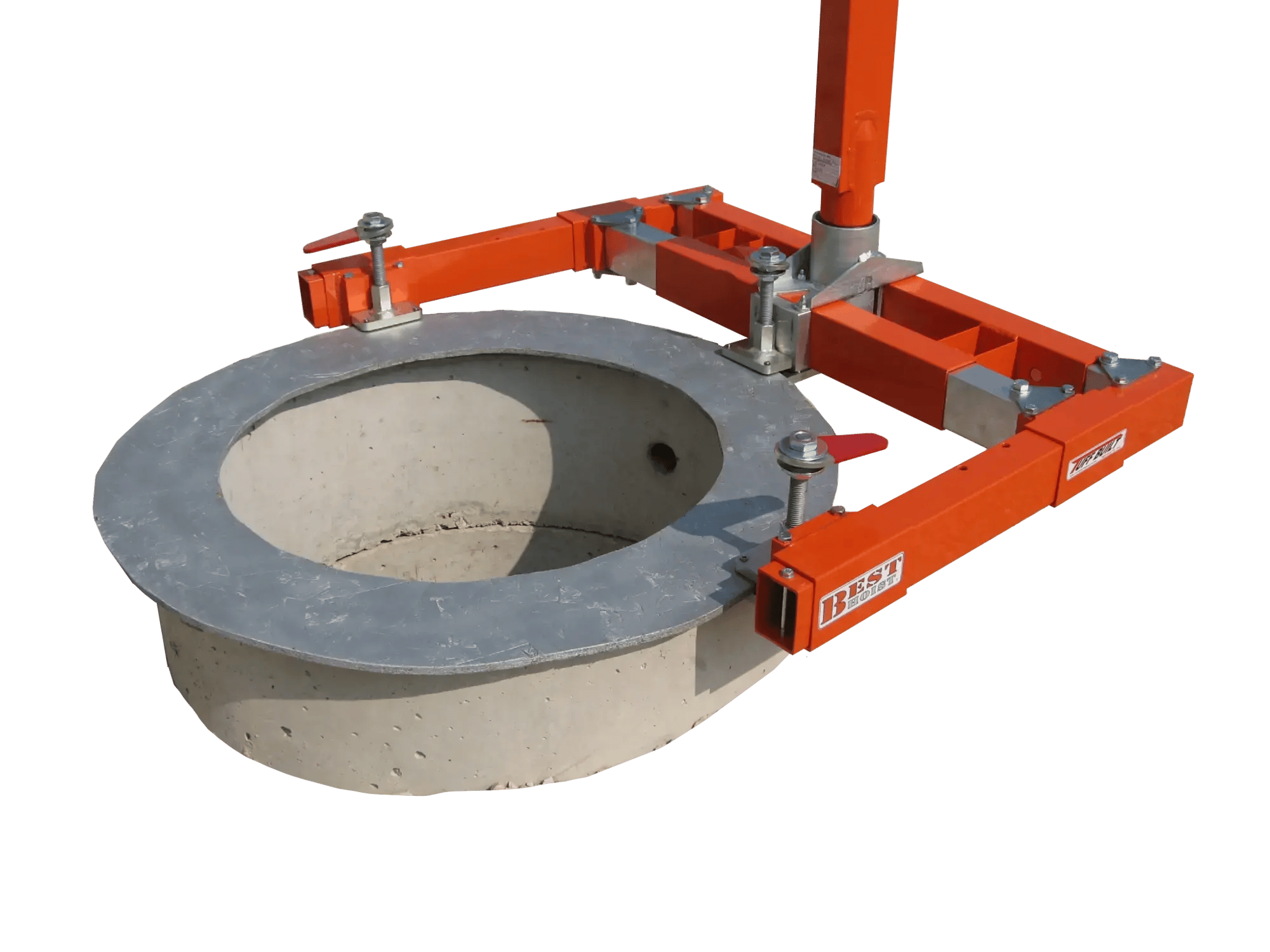

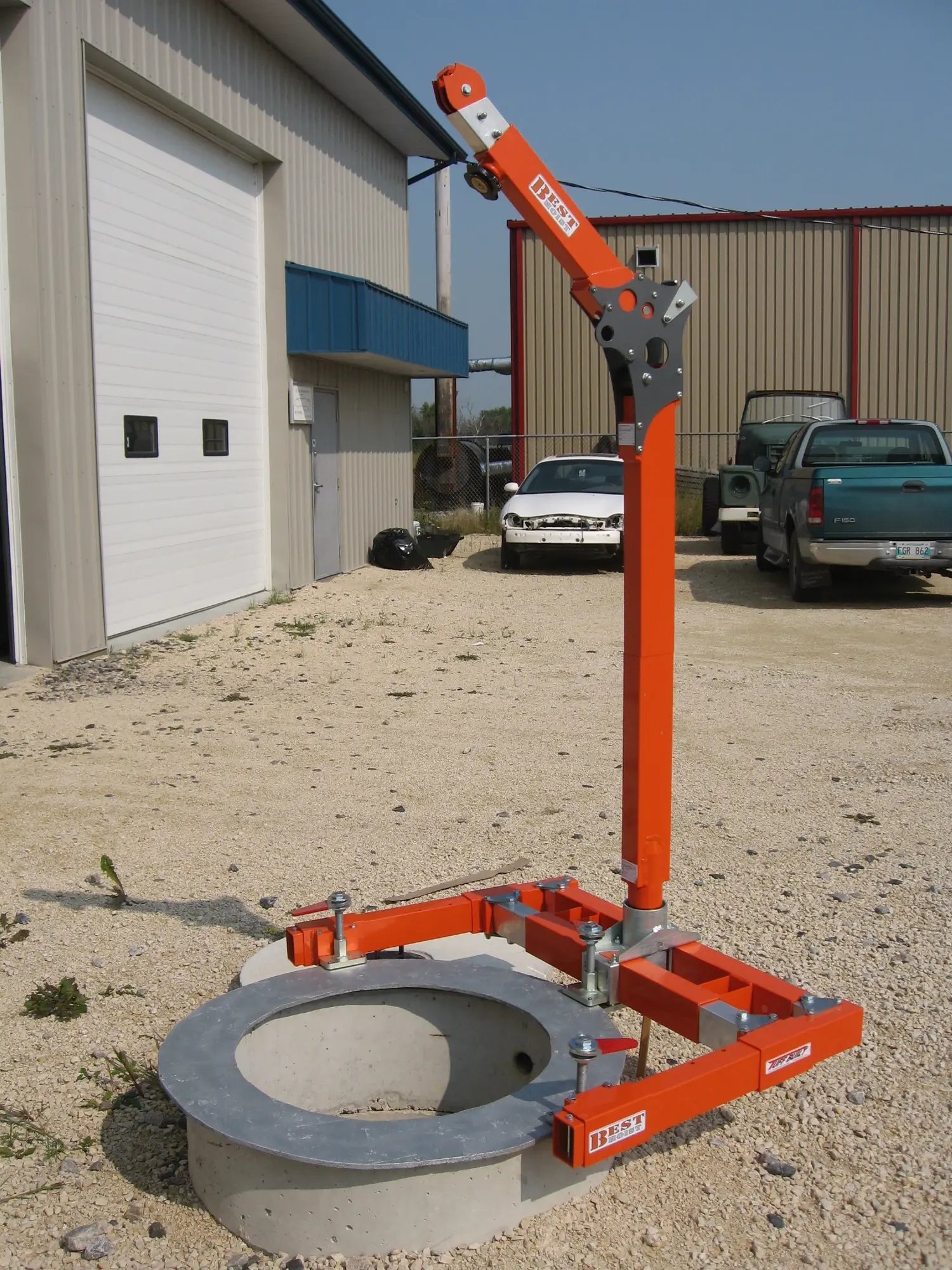

  • Lower base design adjusts to fit most standard entries.
  • Multiple mast configurations available to match height requirements.

OSHA Regulations

Personal Fall Arrest Systems:  System performance criteria. In addition to the general requirements in paragraph (c) of this section, the employer must ensure that personal fall arrest systems: 1910.140(d)(1)(i)
  • Limit the maximum arresting force on the employee to 1,800 pounds (8 kN); 1910.140(d)(1)(ii)
  • Bring the employee to a complete stop and limit the maximum deceleration distance the employee travels to 3.5 feet (1.1 m); 1910.140(d)(1)(iii)
  • Have sufficient strength to withstand twice the potential impact energy of the employee free falling a distance of 6 feet (1.8 m), or the free fall distance permitted by the system; and... 1910.140(d)(1)(iv)
  • Sustain the employee within the system/strap configuration without making contact with the employee's neck and chin area. 1910.140(d)(1)(v)
  If the personal fall arrest system meets the criteria and protocols in appendix D of this subpart, and is being used by an employee having a combined body and tool weight of less than 310 pounds (140 kg), the system is considered to be in compliance with the provisions of paragraphs (d)(1)(i) through (iii) of this section. If the system is used by an employee having a combined body and tool weight of 310 pounds (140kg) or more and the employer has appropriately modified the criteria and protocols in appendix D, then the system will be deemed to be in compliance with the requirements of paragraphs (d)(1)(i) through (iii). 1910.140(d)(2)   The employer must ensure that:
  • On any horizontal lifeline that may become a vertical lifeline, the device used to connect to the horizontal lifeline is capable of locking in both directions on the lifeline. 1910.140(d)(2)(ii)
  • Personal fall arrest systems are rigged in such a manner that the employee cannot free fall more than 6 feet (1.8 m) or contact a lower level. A free fall may be more than 6 feet (1.8 m) provided the employer can demonstrate the manufacturer designed the system to allow a free fall of more than 6 feet and tested the system to ensure a maximum arresting force of 1,800 pounds (8 kN) is not exceeded. 1910.140(d)(3)
  • Body belts. Body belts are prohibited as part of a personal fall arrest system.

Did You Know?

All guardrail that is protecting an opening or leading edge must be able to support 200 pounds on the top rail and 150 pounds on the midrail in any direction?
