Side Entry Systems for Confined Space

Side Entry Systems

Side entry systems are designed for confined space entry, as well as retrieval and rescue operations involving horizontal entries with vertical positioning or retrieval requirements inside silos, tanks, storage towers, vaults, and sewer systems.  Whether your confined space side entry application is of a temporary nature, requiring a portable configuration, or regular access requirements dictate use of  a permanently mounted system, the safety specialists at Diversified Fall Protection can recommend a system that will keep your facility in compliance with all OSHA regulations while maintaining personnel safety and productivity.

Side Entry Systems
Side Entry Systems
Side Entry Systems
Side Entry Systems
Side Entry Systems
Side Entry Systems
Side Entry Systems
Side Entry Systems

Design Considerations

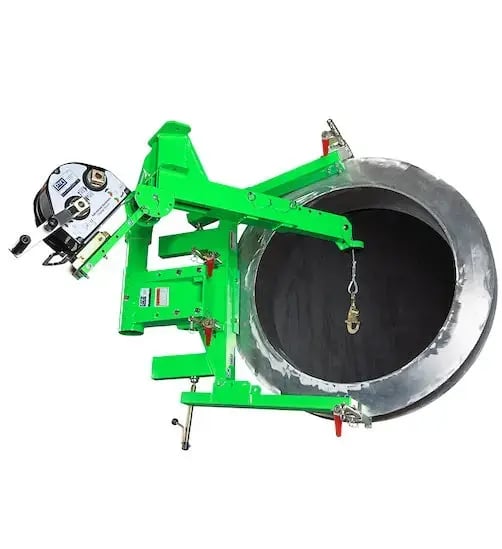

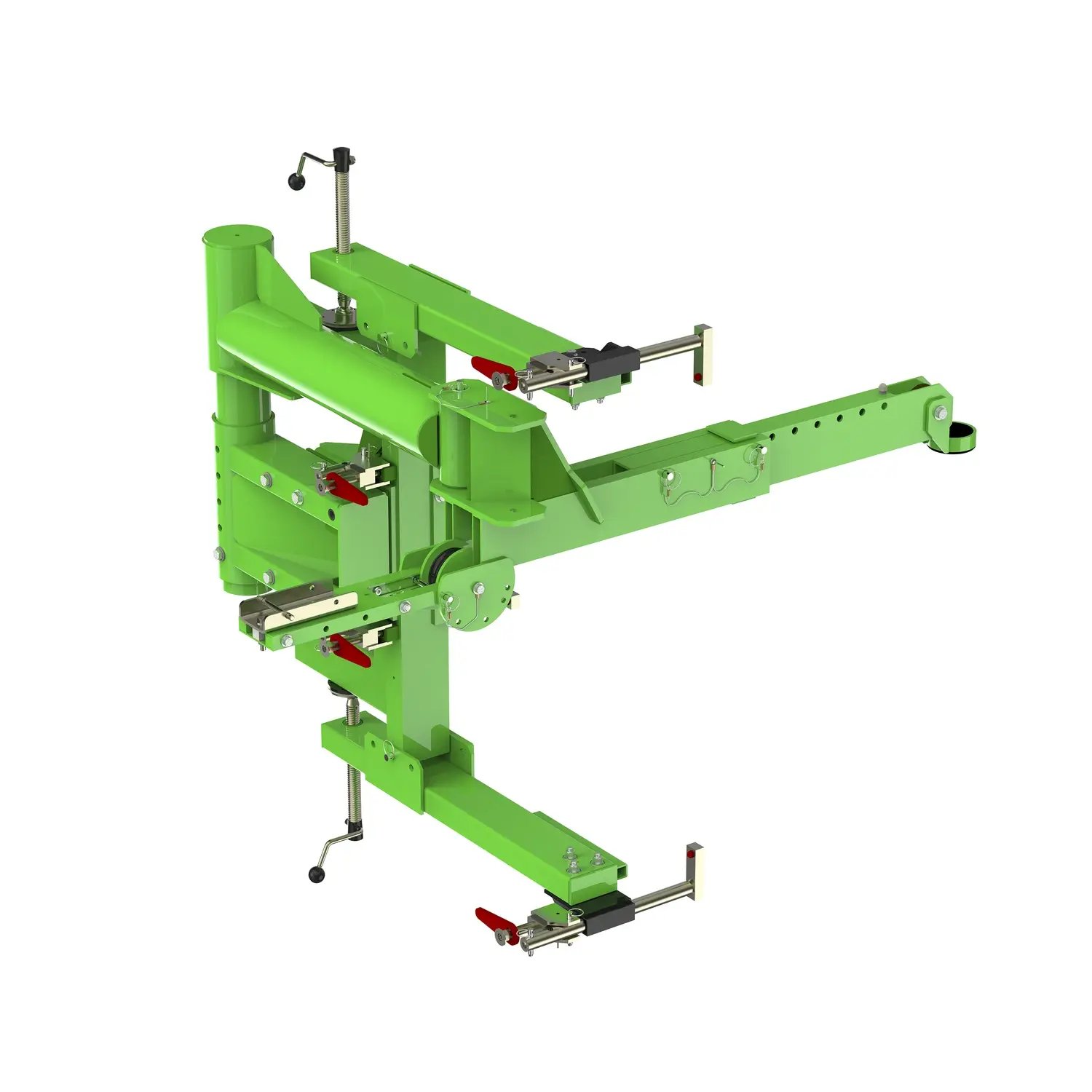

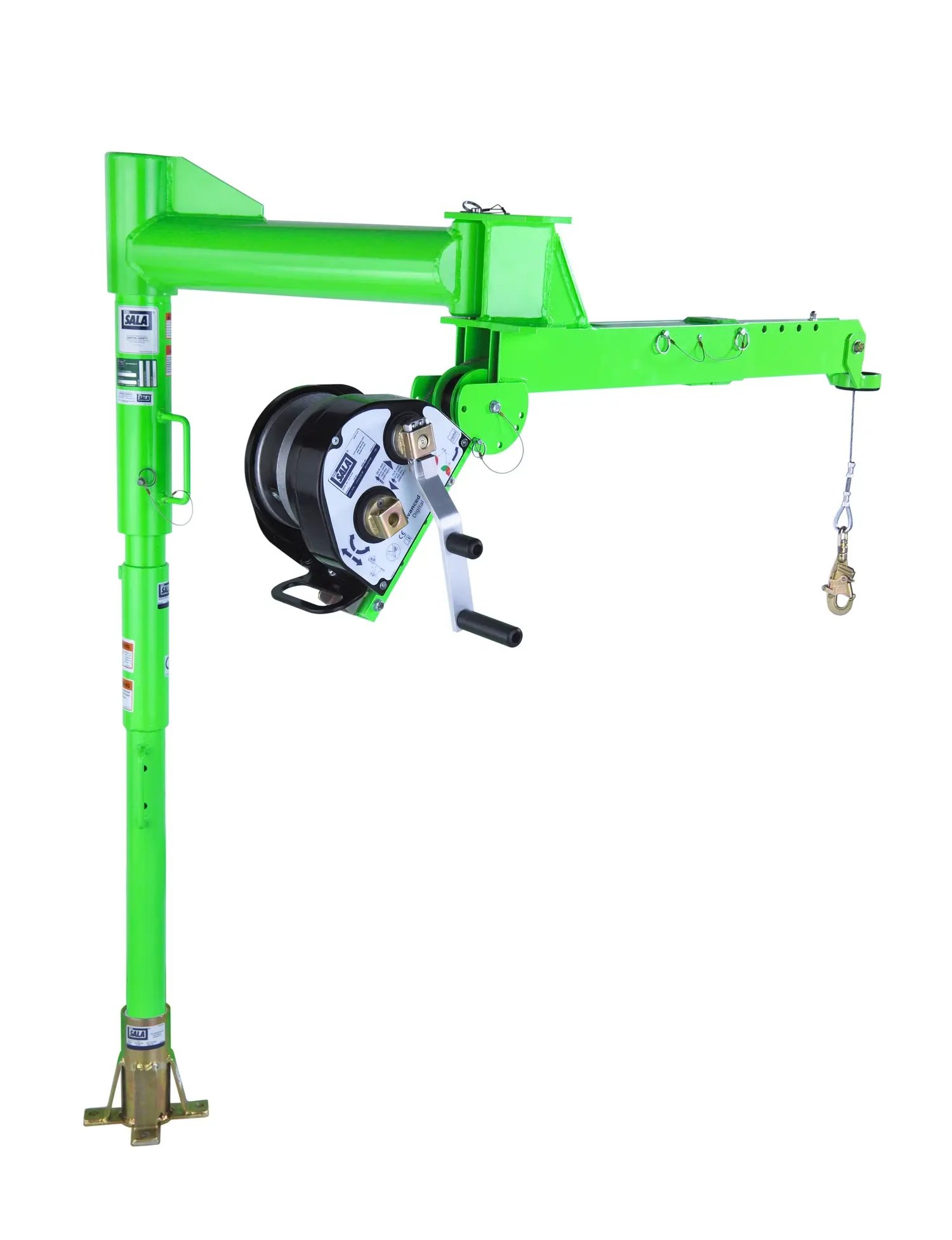

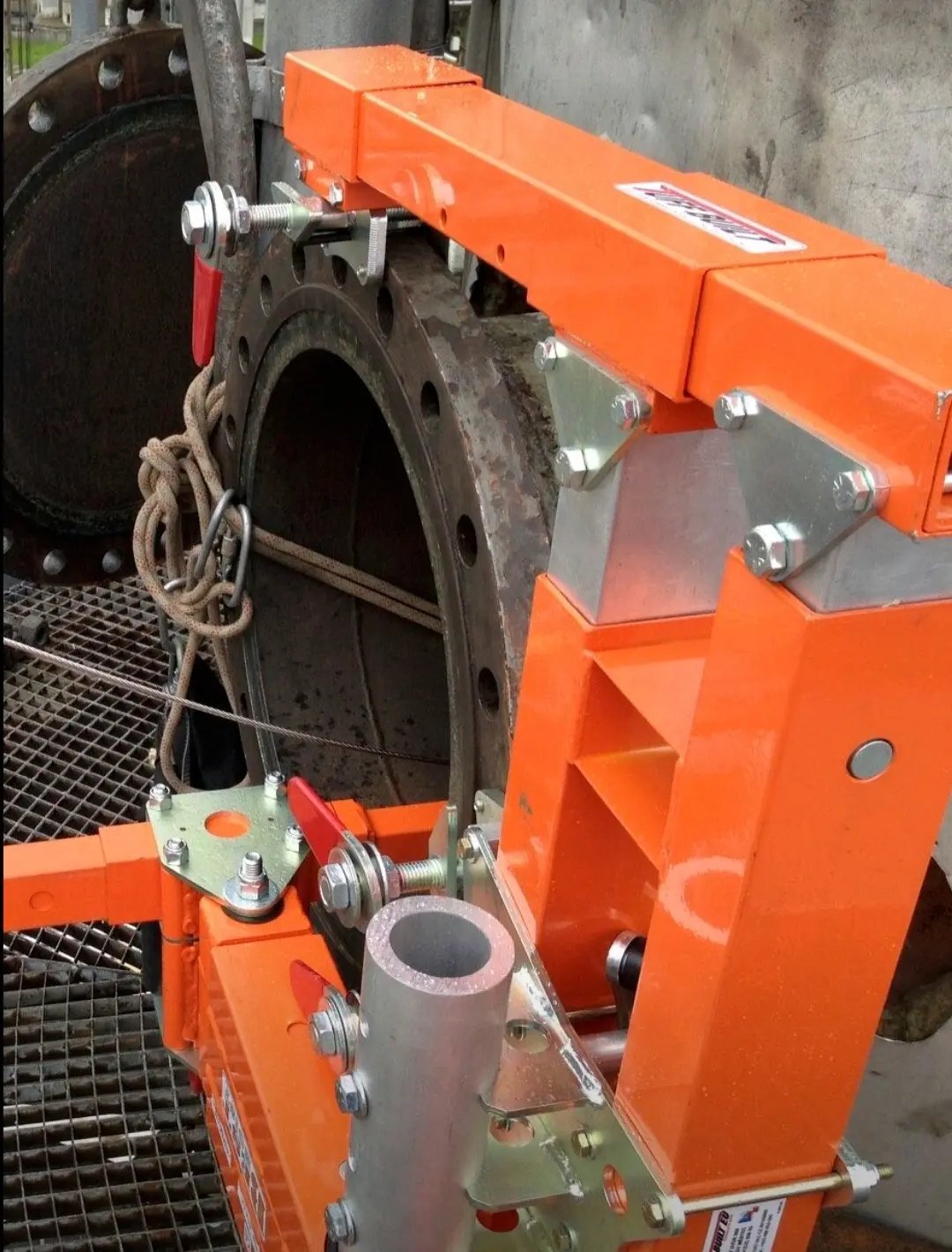

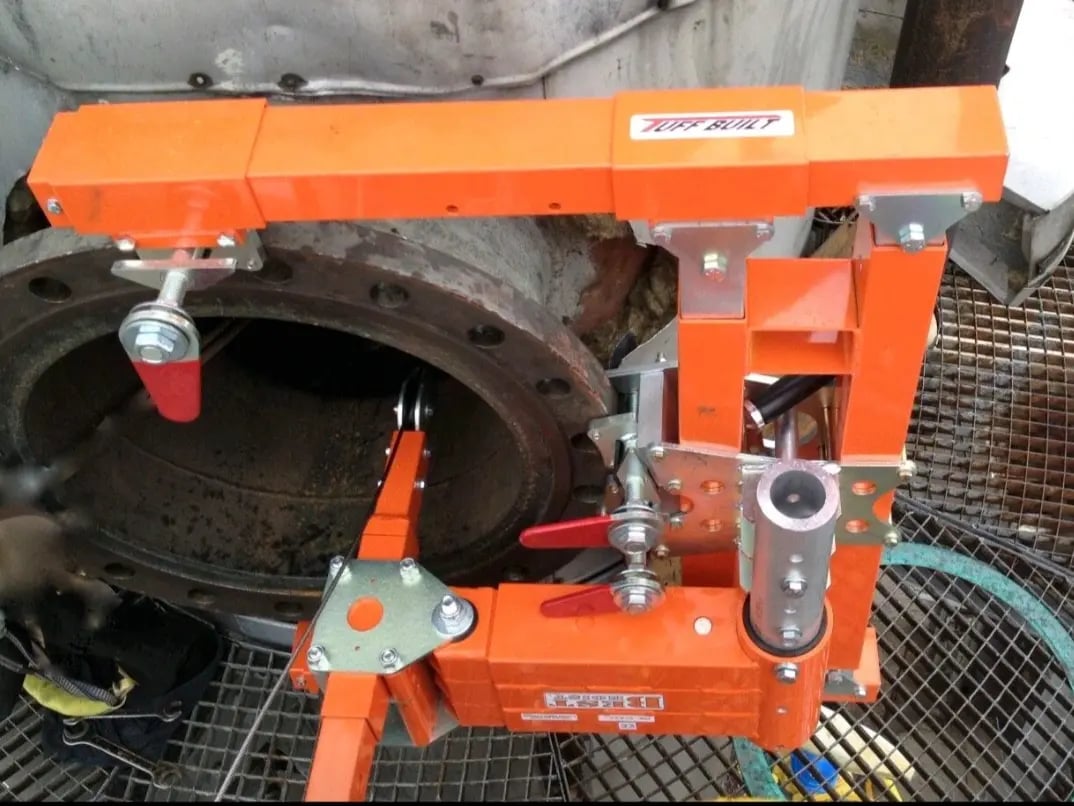

Side entry confined space and rescue / retrieval systems may be used with external adjustable tank collars to accomodate a variety of different manways. These systems may also be used with a permanently mounted base and extension post.  Side entry system feature flexible setup options and fully articulating boom systems to adapt to an infinite number of manway designs and surrounding configurations.

OSHA Regulations

Personal Fall Arrest Systems:  System performance criteria. In addition to the general requirements in paragraph (c) of this section, the employer must ensure that personal fall arrest systems: 1910.140(d)(1)(i)
  • Limit the maximum arresting force on the employee to 1,800 pounds (8 kN); 1910.140(d)(1)(ii)
  • Bring the employee to a complete stop and limit the maximum deceleration distance the employee travels to 3.5 feet (1.1 m); 1910.140(d)(1)(iii)
  • Have sufficient strength to withstand twice the potential impact energy of the employee free falling a distance of 6 feet (1.8 m), or the free fall distance permitted by the system; and... 1910.140(d)(1)(iv)
  • Sustain the employee within the system/strap configuration without making contact with the employee's neck and chin area. 1910.140(d)(1)(v)
  If the personal fall arrest system meets the criteria and protocols in appendix D of this subpart, and is being used by an employee having a combined body and tool weight of less than 310 pounds (140 kg), the system is considered to be in compliance with the provisions of paragraphs (d)(1)(i) through (iii) of this section. If the system is used by an employee having a combined body and tool weight of 310 pounds (140kg) or more and the employer has appropriately modified the criteria and protocols in appendix D, then the system will be deemed to be in compliance with the requirements of paragraphs (d)(1)(i) through (iii). 1910.140(d)(2)   The employer must ensure that:
  • On any horizontal lifeline that may become a vertical lifeline, the device used to connect to the horizontal lifeline is capable of locking in both directions on the lifeline. 1910.140(d)(2)(ii)
  • Personal fall arrest systems are rigged in such a manner that the employee cannot free fall more than 6 feet (1.8 m) or contact a lower level. A free fall may be more than 6 feet (1.8 m) provided the employer can demonstrate the manufacturer designed the system to allow a free fall of more than 6 feet and tested the system to ensure a maximum arresting force of 1,800 pounds (8 kN) is not exceeded. 1910.140(d)(3)
  • Body belts. Body belts are prohibited as part of a personal fall arrest system.
